詳細情報 |
|||
| 色: | 1色 | フィーダ: | 自動送り装置 |
|---|---|---|---|
| 梱包サイズ: | 1400mm W:1300mm H:2150mm | ダウンロード中: | 自動ダウンロード |
| 保証: | 1年 | ドライヤー: | UV-LED |
| 制御システム: | 触覚画面インターフェースによるPLC制御 | ||
製品の説明
Machine Features
SR812 is suitable for screen printing UV ink of various colors on small round tubes, pens, eyebrow pencils, lipsticks,syringes and other products.
SR812-H is for hot stamping on small hard tubes, pens, eyebrow pencils, lipsticks,syringes and other products.
SR812-IR is suitable for screen printing IR ink of various colors on syringes.
The machine adopts an integrated turntable design with complete functions, easy to operate.
The machine adopts well-known brand electrical components, PLC control system and easy-to-use touch screen, with reliable performance.
Optional Configuration
Plasma surface treatment function.
LED-UV curing function.
Technical Parameters
Machine Model SR812 SR812-H SR812-IR
Works Station 8 8 8
Printing Speed Up to 60pcs/min Up to 50pcs/min Up to 40pcs/min
Product Height 5-30mm 5-30mm 5-30mm
Product Height 50-120mm 50-120mm 50-120mm
Max Printing Height 100mm 100mm 100mm
Max Printing Height 100mm 100mm 100mm

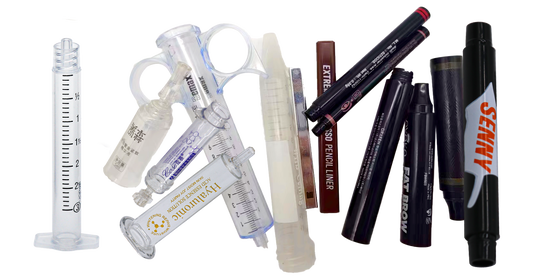

Printing Samples
