詳細情報 |
|||
| レイヤー: | 多層スクリーン印刷機 | 色: | 2色 |
|---|---|---|---|
| フィーダ: | 自動送り装置 | 梱包サイズ: | 1400mm W:1300mm H:2150mm |
| ダウンロード中: | 自動ダウンロード | 保証: | 1年 |
| ドライヤー: | UV-LED | 制御システム: | 触覚画面インターフェースによるPLC制御 |
製品の説明

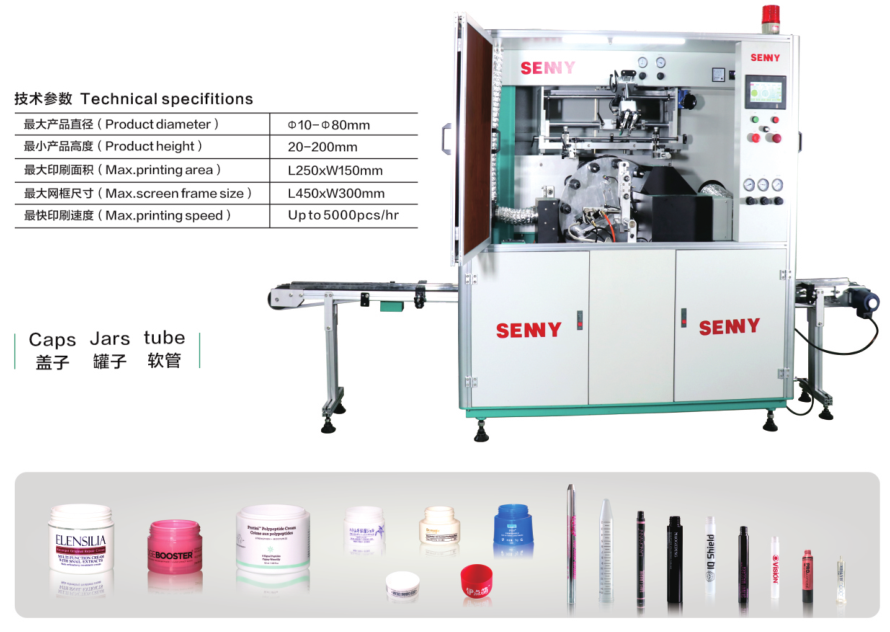

Machine Features
SR1522 is suitable for screen printing UV ink of various colors on small round tubes, pens, eyebrow pencils, lipsticks,syringes and other products.
SR1522-F is suitable for screen printing UV ink of various colors on square hard tubes.
The machine adopts an integrated turntable design with complete functions, easy to operate.
The machine adopts wellknown brand electrical components, PLC control system and easy-to-use touch screen, withreliable performance.
Optional Configuration
Plasma surface treatment function.
LED-UV curing function.
Technical Parameters
Machine Model SR1522 SR1522-F
Works Station 15 15
Printing Speed Up to 60pcs/min Up to 60pcs/min
Product Diameter 5-30mm
Product Length/Width 10-30mm
Product Height 50-120mm 50-120mm
Max Printing Length 100mm 30mm
Max Printing Height 100mm 100mm

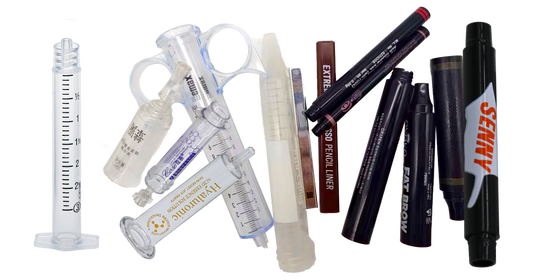

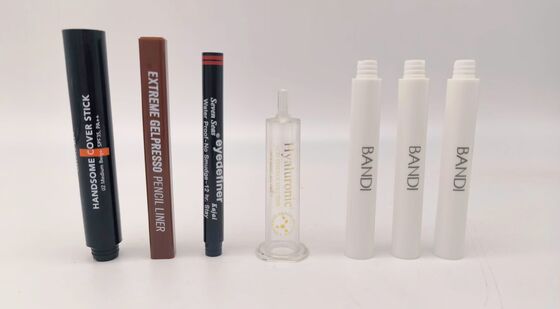

Printing Samples
![]()
![]()
![]()
