詳細情報 |
|||
| 最小注文数量: | 1pc | 価格: | negotiable |
|---|---|---|---|
| パッケージの詳細: | 合板パッケージ | 受渡し時間: | 1か月 |
| 支払い条件: | T/T | 供給の能力: | 10pcs/月 |
| 証明: | CE SGS | パッケージの詳細: | 合板パッケージ |
| アフターセールスサービス: | ビデオまたはオンライン | 色の印刷: | 1-4色 |
製品の説明

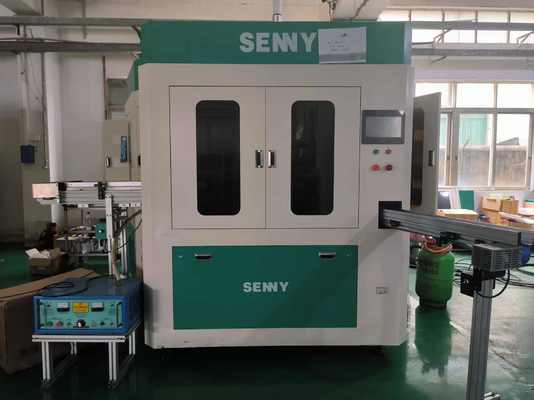

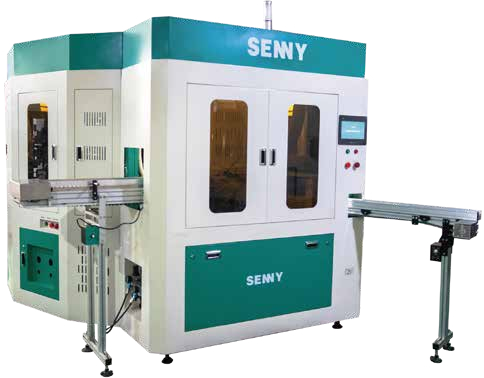

1+4 Color CNC Tube Screen Printing Machine With Hot Stamping Function 85pcs/Min
PRODUCT
Features
- Driven by a servo motor and controlled digitally, the machine operates stably while maintaining high printing accuracy. Notably, the servo motor—recognized for its rapid dynamic response, stable torque output, and outstanding low-speed, high-torque performance—is regulated via a precision digital control system (e.g., a dedicated industrial PLC or motion controller), further ensuring reliable, high-precision operation.
- Equipped with both a fixed touchscreen and a mobile wireless tablet control system, the device supports remote services. Technical engineers can securely access the machine’s control system through an encrypted network to perform remote diagnostics—such as identifying issues like component wear or parameter mismatches—optimize operating parameters (e.g., fine-tuning printing pressure to suit different materials), or conduct firmware upgrades. This eliminates the need for on-site service visits and slashes average maintenance response time by 60%.
- The machine adopts core electrical components from internationally renowned industrial brands to ensure long-term reliable operation. For instance, it uses Schneider low-voltage circuit breakers (with overload and short-circuit protection) for safe power distribution, Siemens S7-series industrial PLCs (with high anti-interference capability) for logic control and task scheduling, and Omron E3Z-series photoelectric sensors (0.1mm detection accuracy) for precise printing platform positioning.
Technical parameters
| Mechine Model | SRS566 |
| Printimg Color | 1+4 |
| Printing speed | Up to 85pcs/min |
| Soft Tube Diameter | 13-76mm |
| Soft Tube Length | 30-240mm |
| Max Printing Length | 220mm |
| Max Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Configuration
- Unscrambling&feeding machine Hot stamping function plasma surface treatment function
- Visual registration function LED-UV curing function Finished product quality inspection function
UV curing
Hot staming for small tube
Applications
SRS566 CNC Tubular UV Screen Printing Machine is a fully automatic CNC model, specifically designed for small-sized cosmetic and skincare plastic containers. Boasting a wide application range, it enables UV screen printing on various cylindrical tubes, including cosmetic, pharmaceutical, and toothpaste tubes, as well as plastic, metal, glass, and composite tubes.

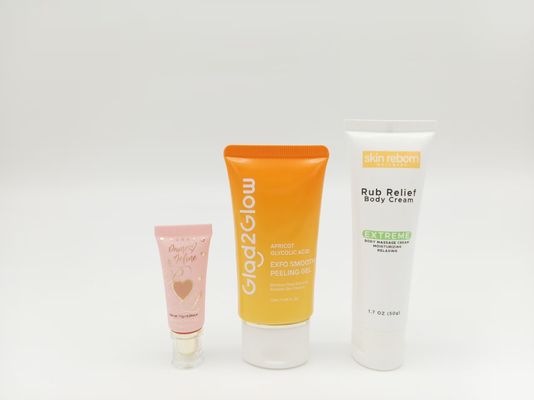

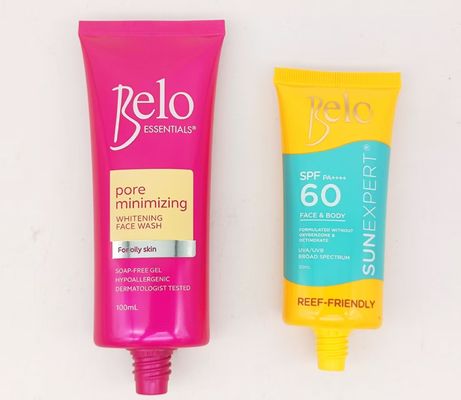

Printing sample
What is the difference between a linear screen printing machine and a CNC rotary screen printing machine?
1. Straight line screen printing machine is faster than CNC rotary screen printing machine, but the printing accuracy is lower.
2. Straight line presses are modular combinations, the more colors the larger the footprint, while CNC rotary is a rotating structure that will save space.
3. CNC printers are easier to use with remote management and service feature.
4. For CNC machine, all printing functions will be done in the same set of fixture, which will avoid the product being scratched.
5. All adjustments such as printing head, screen frame etc. can be fixed by wireless tablet PC, but linear machine must be adjusted manually.
