詳細情報 |
|||
| オートグレード: | 完全に自動 | プレートタイプ: | 画面プリンター |
|---|---|---|---|
| 印刷された色: | 3 | 耐久性を印刷します: | 耐久性が高い |
| 保証: | 1年 | アフターセールスサービス: | ビデオまたはオンライン |
| 支払条件: | T/T | パッケージの詳細: | 合板パッケージ |
| 証明: | CE | ||
| ハイライト: | 360-degree bottle screen printer,high-speed bottle screen printer,3-color UV bottle printer |
||
製品の説明

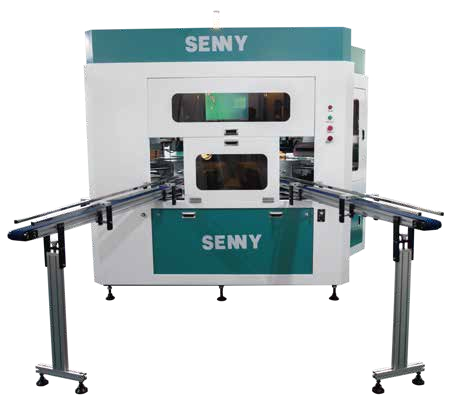

360-Degree Bottle Screen Printer High-Speed Printing With 3-Color UV Printing
Machine Application:
1. Wide Shape & Product Coverage
It handles not only common round (e.g., cylindrical plastic bottles) and oval (e.g., elliptical perfume bottles) items, but also shaped products—such as curved cosmetic essence bottles, ribbed metal lids, or customized small-appliance plastic casings. Even products with subtle surface contours maintain uniform ink coverage.
2. Broad Material Adaptability
It works seamlessly with mainstream packaging materials:
Plastics: PET (beverage bottles), PP (food containers), HDPE (chemical barrels) — UV inks adhere firmly without peeling.
Glass: Soda-lime glass (sauce jars) and high-borosilicate glass (skincare bottles) — printed patterns resist scratches.
Metals: Aluminum (aerosol cans), tinplate (food cans) — cured inks offer wear and corrosion resistance.
3. Key 3-Color UV Printing Advantages
Precise overprinting (≤0.1mm accuracy) for vivid brand logos or product info.
Instant UV curing (no long drying time) to avoid smudges, suiting high-speed lines.
Durable ink layer (resists friction, solvents, temperature changes) for long-term use.
It meets needs of food & beverage, cosmetics, daily chemical and industrial packaging—for both mass-produced and small-batch customized products.

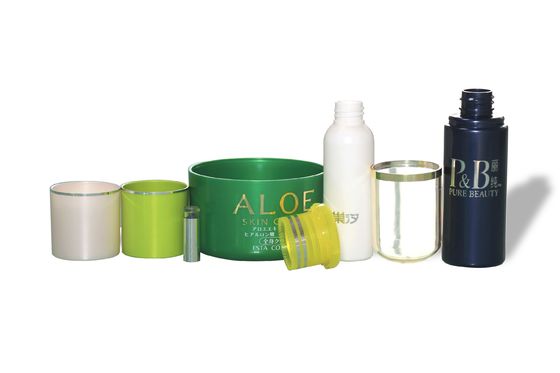

Printing sample
Main Functions:
Wireless tablet control function;
Remote service management function;
Speed-adjustable conveyor separation feeding function;
Bottle standing robot feeding function;
Digitally controlled servo motor drive for 3-color 360-degree printing;
UV curing function;
Standing robot bottle discharge function;
Conveyor discharge function with adjustable speed.
Ten workstations:
1. Visual positioning and electrostatic dusting of the bottom of the feed bottle;
2. Flame treatment
3. Visual positioning of the bottle
4. First color screen printing
5. LED-UV curing
6. Second color screen print
7. LED-UV curing
8. Third color screen printing (or hot stamping)
9. UV curing
10. Discharge.
Screen printing device UV curing device
Technical Specifications:
| Specification/Model | SRS288 | SRS388 | SRS488 | SRS688 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–100mm |
| Height of bottle | 20–320mm |
| Printing length | 320mm |
| Printing height | 220m |
Support and Services:
We provide comprehensive technical support and service guarantees for cap printing machines. Our professional team consists of experienced and well-trained technicians, ready to solve any problems that arise during the operation of your machine. Our support services cover various aspects, including troubleshooting, parts replacement, equipment maintenance, and software upgrades. We also offer on-site repair and maintenance services to ensure that the equipment can be properly handled on-site. In addition, we have a complete range of replacement parts and supplies to meet your various needs.
We always take pride in providing excellent customer service. Our team is on call 24/7 to answer your questions and handle issues at any time. We are committed to delivering high-quality services and fully ensuring your satisfaction.
If you have any questions or need assistance, please feel free to contact us. We look forward to supporting your bottle cap printing machine!
