1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven IR Printing Machine
商品の詳細:
| 起源の場所: | 東中国 |
| ブランド名: | SENNY |
| 証明: | CE SGS |
| モデル番号: | SLS1588-IR5123 |
| ドキュメント: | Plastic Bottle printing mac...ne.pdf |
お支払配送条件:
| 最小注文数量: | 1pc |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 合板パッケージ |
| 受渡し時間: | 45days |
| 支払条件: | T/T |
| 供給の能力: | 10 PCS/月 |
|
詳細情報 |
|||
| マシンタイプ: | SLS1588-IR5123 | 印刷色: | 1-8色 |
|---|---|---|---|
| 保証: | 1年 | ブランド: | セニー |
| アフターサービス: | ビデオまたはオンライン | プレートタイプ: | 線形スクリーン印刷機 |
| ハイライト: | UV bottle printing machine,servo-driven screen printer,70 pcs/min bottle printer |
||
製品の説明

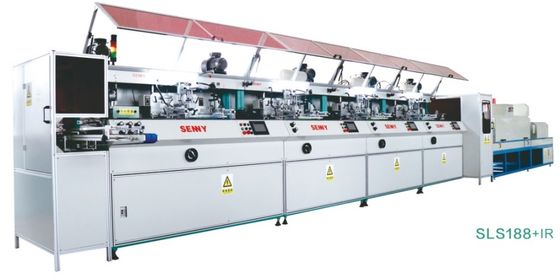

1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven IR Printing Machine
Machine Feature
- This machine is suitable for multi-color IR ink screen printing on plastic bottles of various shapes, such as round, oval and square.
- Driven by a digital control servo motor for its printing function, the machine can easily achieve 360-degree printing. It is also equipped with remote management and service functions (compliant with Industry 4.0 standards).
- Equipped with electrical components from well-known brands, an easy-to-use touch screen and a PLC control system, the machine delivers stable and reliable performance.
- Adopting a highly customizable modular structure, the machine can be connected in a straight line to form a 1-8 color printing machine.
- The machine comes with a standard configuration of a screen printing and IR curing module. You can optionally connect independent modules such as hot stamping, labeling and quality inspection to form a multi-functional printing machine.
- After the product printing is completed, the products are discharged by a manipulator and arranged in a row into a constant-temperature drying tunnel furnace to achieve complete curing of the ink.
Optional Configuration
- Plasma surface treatment function.
Technical Paramete
| Machine Model | SLS1588-IR5123 | SLS1888-IR5123 |
| Printing Speed | Up to 50 pcs/min | Up to 50 pcs/min |
| Diameter at 360 degree | 20-140mm | 20-170mm |
| Bottle Height | 50-280mm | 50-300mm |
| Max.Printing Length | 250mm | 300mm |
| Max.Printing Height | 200mm | 250mm |
Printing your vision
About us:
Senny caters to industries including food, medicine, toys, cosmetics, daily chemicals, electronics and decorative products. Leveraging automatic printing technologies like screen printing, pad printing, hot stamping, labeling, offset printing and digital printing, it delivers high-quality, exquisite graphics and texts on products of various shapes made from plastic, metal, glass and ceramics.
Since 1994, Senny has stuck to its business philosophy of providing customers with premium products and services. It uses top-tier electrical control components and materials for R&D and manufacturing, and constantly enhances printing quality on diverse products to meet the growing market demand for high-quality packaging.
