詳細情報 |
|||
| モデル番号: | SRS829 | 印刷色: | 2色 |
|---|---|---|---|
| 保証: | 1年 | ブランド: | セニー |
| プレートタイプ: | スクリーンの印字機 | アフターサービス: | ビデオまたはオンライン |
| ハイライト: | CNC automatic tube printing machine,2-color tube screen printer,45pcs/min tube printing machine |
||
製品の説明

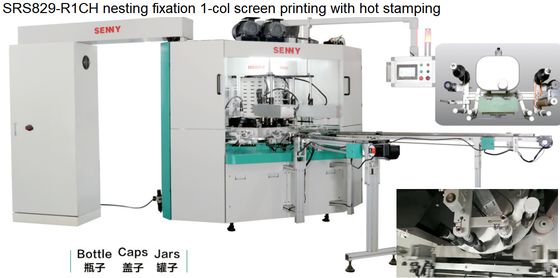

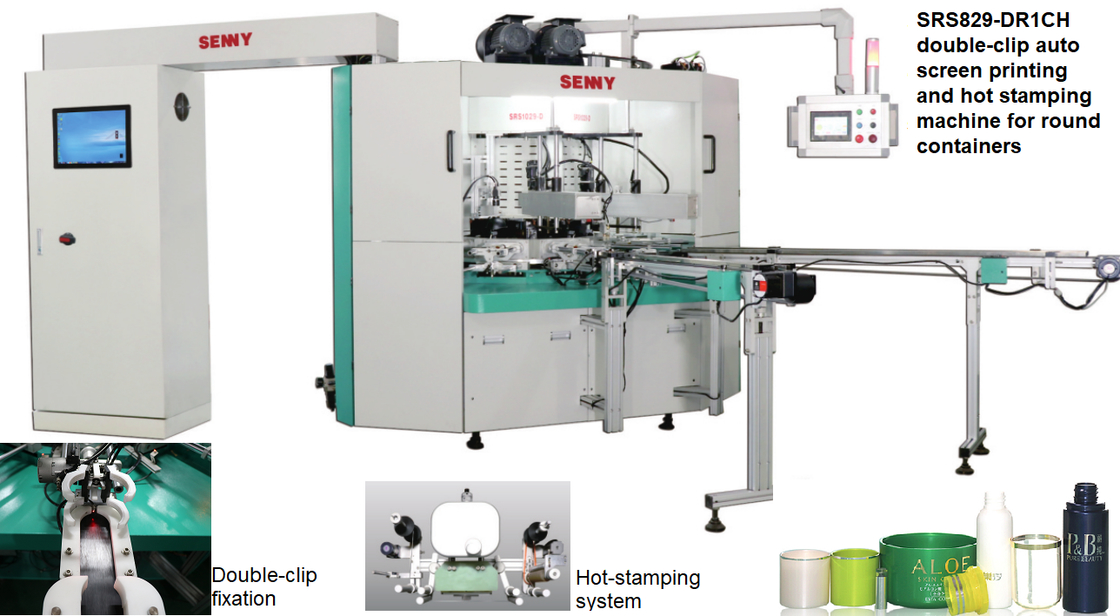

- 2-Color 45pcs/Min Tubes CNC Automatic Printing Machine
Machine Feature
- SRS829 is applicable for screen printing UV inks of various colors, along with hot stamping and other decorative processes, on products of diverse shapes such as bottles, caps and jars. These products can be made from materials including plastic, metal and glass.
- Specifically developed for printing on small containers, this machine features a compact structure and occupies a small area.
- Employing an integrated turntable design, the machine fulfills all printing functions with the same set of fixtures. It boasts a printing accuracy of up to ±0.1 mm and ensures no scratches on the products.
- Powered by a digitally controlled motor, the machine enables 360-degree printing of products. It is also equipped with remote management and service functions, in line with Industry 4.0 standards.
- The machine utilizes electrical components from well-known brands, adopts a PLC control system, and supports easy operation via a touch screen and a wireless tablet, delivering reliable performance.
Optional Configuration
- Plasma surface treatment function. Hot stamping function. Visual registration function.
- LED-UV curing system. Finished product quality inspection function.
Technical Parameters
| Machine Model | SRS829 |
| Work Station | 8 |
| Diameter at 360 Degree | 13-60mm |
| Container Height | 20-200mm |
| Printing Color | 2 colors |
| Printing Speed | Up to45 pcs/min |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
Printing your vision
About us:
Senny serves food, medicine, toys, cosmetics, daily chemicals, electronics, decorative products and other industries. Through the use of automatic printing technologies, such as screen printing,pad printing, hot stamping, labeling, offset printing and digital printing, it realizes printing high-quality exquisite graphics & texts on the surface of various shapes of products such as plastic, metal, glass and ceramics.
Since 1994, Senny has always adhered to the business philosophy of providing customers with high-quality products and services, exploiting the most advanced electrical control components and materials for R&D and manufacturing, and continuously improving the printing quality on various products to meet the increasingly extensive market requirements for high-quality packaging.
