詳細情報 |
|||
| 場所: | 1 | 印刷色: | 1色 |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | スピード: | 最大5000pcs/時間 |
| 保証: | 1年 | 自動グレード: | 自動 |
| パッケージの詳細: | 合板パッケージ | 支払条件: | T/T |
| 証明: | CE | 供給の能力: | 5pcs/月 |
| ハイライト: | fully automatic screen printing machine for plastic cans,high speed screen printing machine 5000pcs/hour,screen printing machine with warranty |
||
製品の説明
1 Color Fully Automatic Screen Printing Machine For Plastic Cans And Lids 5000pcs/Hour

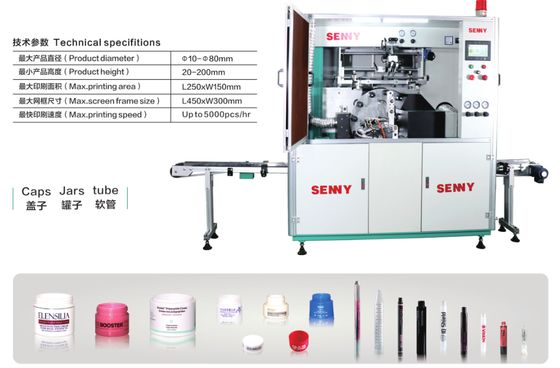

Technical specification:
| Model | SRS818 | SRS818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr | Up to 5000pcs/hr |
Product Features:
1. Automatic screen printing machine for plastic soft tubes, round cans and round lids with automatic feeding function, electrostatic dust removal function, flame treatment function, servo-driven register function, automatic printing and UV curing function. SRS818 saves a lot of manpower for changing different products, shortens the adjustment time, and makes the work easier.
2. SRS818 can make different types of machines according to requirements, such as inline printing or clamp printing.
3. Servo-driven with color-coded pre-register function or servo-driven visual pre-register function is optional.
4. Features a touch screen for easy human-machine interaction and a full warning system.
5. Adopts a fully servo-driven screen printing system for maximum precision.
6. All fixtures feature servo motor rotation (gearless design enables easy and fast product changeover)
Feeding device:
Output device:
Applications:
SRS818 Single-color UV Screen Printing Machine is a specialized UV screen printer. Its application scope is specific, suitable for UV screen printing on various small-sized cylindrical and irregular workpieces including small bottles, cans, hoses, lids, etc.

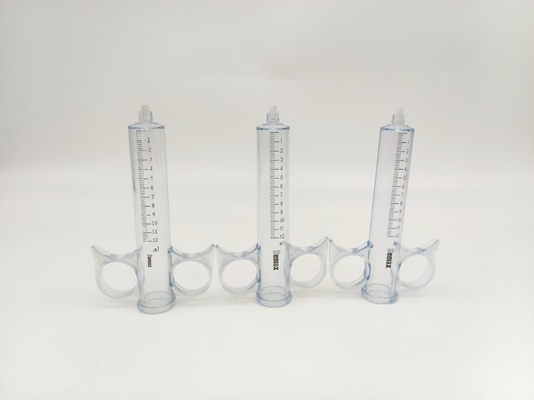

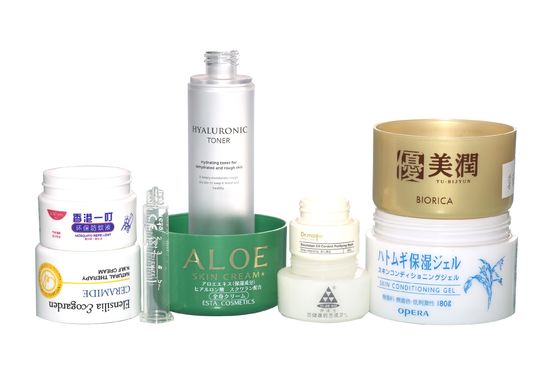

Printing sample
