詳細情報 |
|||
| オートグレード: | 完全に自動 | 場所: | 10 |
|---|---|---|---|
| プレートタイプ: | 画面プリンター | アフターセールスサービス: | ビデオまたはオンライン |
| 印刷された色: | 3 | ブランド: | セニーまたはOEM |
| パッケージの詳細: | 合板パッケージ | 支払条件: | T/T |
| 証明: | CE | ||
製品の説明

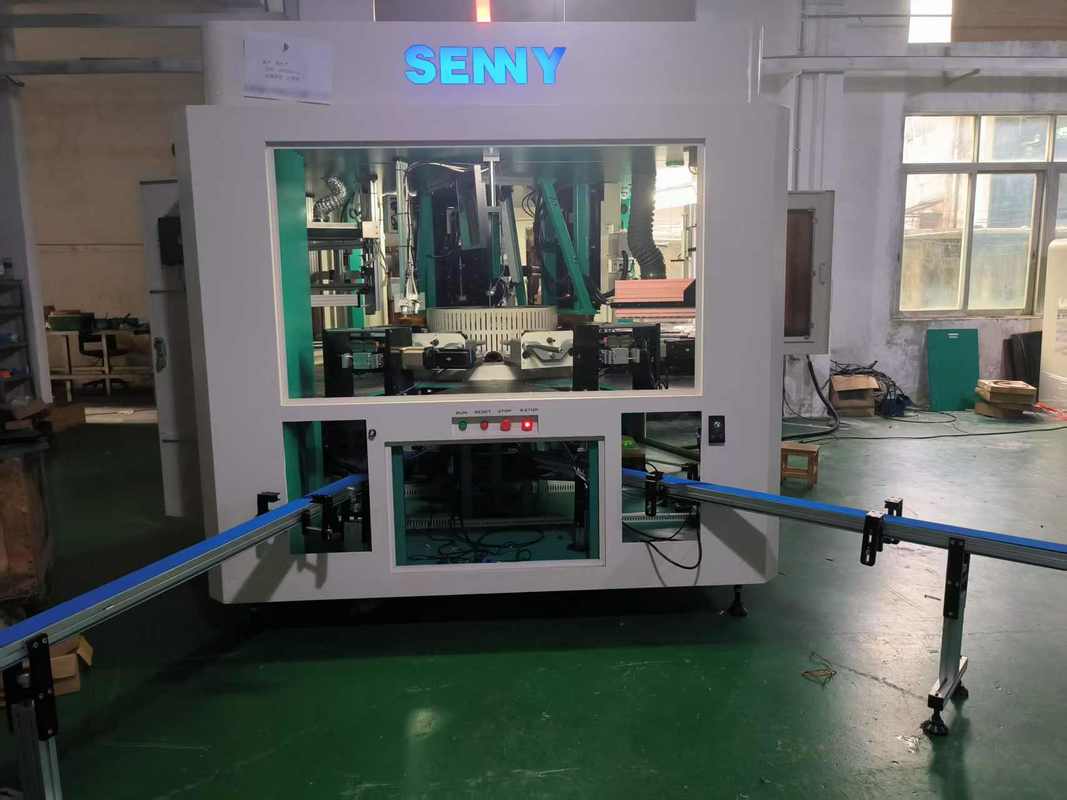

10 Work Stations Bottle Screen Printer For Plastic And Metal Products Up To 55pcs/Min
Machine Application:
This machine is suitable for 360-degree printing of 3 colors of UV ink on bottles, cans, lids and other products of various shapes (such as round, oval, special-shaped) made of plastic, glass, metal and other materials.
Ptinting sample
Main Functions:
Wireless tablet control
Remote service management
Speed-adjustable conveyor belt with separate feeding
Bottle-erecting manipulator feeding
Digital-controlled servo motor-driven 3-color 360° printing
UV curing
Bottle-erecting manipulator discharging
Speed-adjustable conveyor belt discharging
Ten workstations: 1. Visual positioning of the bottom of the feeding bottle and electrostatic dust removal; 2. Flame treatment; 3. Visual positioning of the bottle body; 4. 1st color screen printing; 5. LED-UV curing; 6. 2nd color screen printing; 7. LED-UV curing; 8. 3rd color screen printing (or hot stamping); 9. UV curing; 10. Discharging.
Technical Specifications:
| Specification/Model | SRS288 | SRS388 | SRS488 | SRS688 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–100mm |
| Height of bottle | 20–320mm |
| Printing length | 320mm |
| Printing height | 220m |
