詳細情報 |
|||
| モデル番号: | SRS299 | プレートタイプ: | スクリーンの印字機 |
|---|---|---|---|
| ブランド: | セニー | 印刷色: | 2色 |
| アフターサービス: | ビデオまたはオンライン | 保証: | 1年 |
| ハイライト: | CNC container screen printing machine,2-color UV screen printer,70pcs/min automatic printing machine |
||
製品の説明

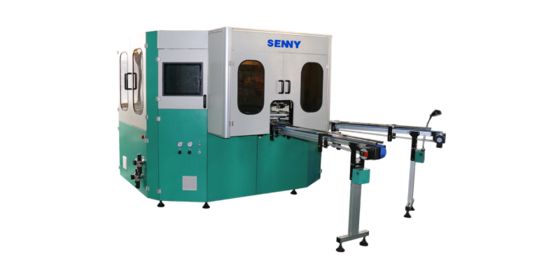

CNC Container 2-Color 70pcs/Min UV Screen Printing Machine
Machine Feature
- 360-degree all-around printing is supported for containers of various shapes, from common cylindrical bottles and square jars to special irregularly shaped cans, ensuring no dead spots in the printing process.
- Equipped with servo motor drive and advanced digital control technology, the machine enables precise adjustment of key printing parameters like speed, position and pressure, making the printing process more stable and controllable.
- Boasting stable operation and high printing accuracy, the machine maintains consistent performance even during long-term continuous production, with its accuracy reaching up to ±0.1mm to ensure clear and neat graphics.
- It features dual control modes – a fixed touch screen for on-site operators to set parameters in real time and a mobile wireless tablet for remote monitoring, plus remote service for quick fault diagnosis and maintenance.
- The machine adopts electrical components from well-known brands, which not only have reliable performance but also effectively reduce the risk of equipment failures and extend the service life of the machine.
Optional Configuration
- Plasma surface treatment(standard configuration is flame surface treatment).
- Bottle sorting machine.
- Quality inspection unit.
Technical Parameters
| Model Number | SRS299 | SRS399 |
| Printed Color | 2 | 3 |
| Diameter at 360 Degree | 10-100mm | 10-100mm |
| Container Height | 20-320mm | 20-320mm |
| Max.Speed | Up to 70 pcs/min | Up to 70 pcs/min |
| Max.Printing area | L300mm*H200mm | L300mm*H200mm |
Printing your vision
About us:
Senny serves a wide range of industries, including food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. Leveraging automatic printing technologies such as screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing, the company can print high-quality and delicate graphics and text on the surfaces of products made from different materials (including plastic, metal, glass, and ceramics) and with various shapes.
Since its establishment in 1994, Senny has always adhered to the business philosophy of "providing customers with high-quality products and services". In the R&D and production processes, the company selects top-tier electrical control components and raw materials, while continuously optimizing the printing quality of various products to meet the growing market demand for high-quality packaging.
