詳細情報 |
|||
| 印刷された色: | 1色 | プレートタイプ: | スクリーンの印字機 |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | スピード: | 70pcs/分まで |
| 保証: | 1年 | アフターセールスサービス: | ビデオまたはオンライン |
| 支払条件: | T/T | パッケージの詳細: | 合板パッケージ |
| 証明: | CE | ||
| ハイライト: | flat screen printing machine for caps,servo-driven flat screen printer,high-speed cap printing machine |
||
製品の説明

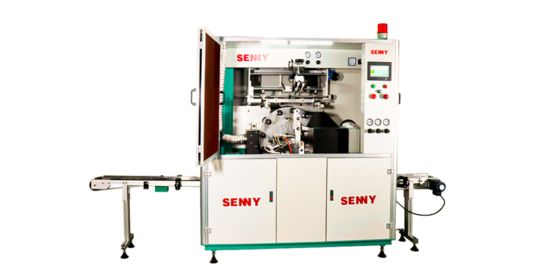

1 Color Flat Screen Printing Machine for Round Caps Servo-Driven Register 5000pcs/Hr
Technical specification:
| Model | SR818 | SR818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr | Up to 5000pcs/hr |
Product Applications and Features:
1. Automatic screen printing machine for plastic tubes, round cans and round caps with automatic feeding function, electrostatic dust removal function, flame treatment function, servo-driven register function, automatic printing and UV curing function.
2. Different types of machines can be manufactured upon request, such as internal mode printing or clamp type printing.
3. Servo-driven with color-code pre-register function or servo-driven visual pre-register function can be selected.
4. With touch screen for easy man-machine dialog and perfect alarm system.

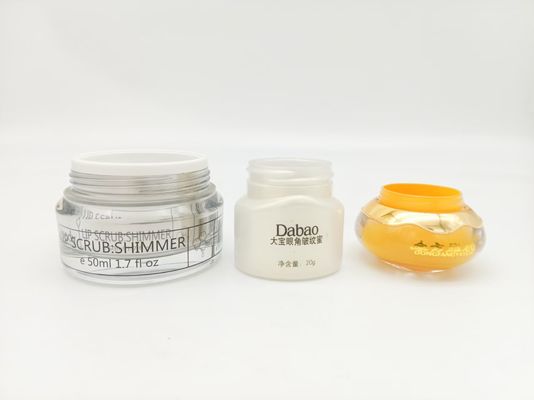

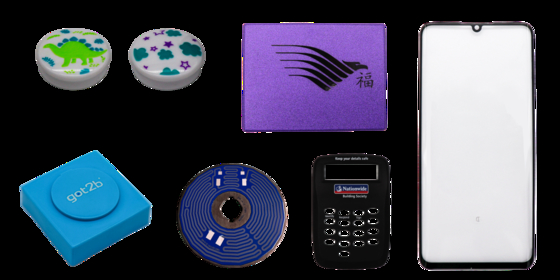

Printing sample
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
