詳細情報 |
|||
| モデル番号: | SLS1888 | 印刷色: | 1-8色 |
|---|---|---|---|
| 保証: | 1年 | プレートタイプ: | 線形スクリーン印刷機 |
| アフターサービス: | ビデオまたはオンライン | ブランド: | セニー |
| ハイライト: | servo-driven UV printing machine,plastic bottle screen printer,70 Pcs/Min bottle printer |
||
製品の説明

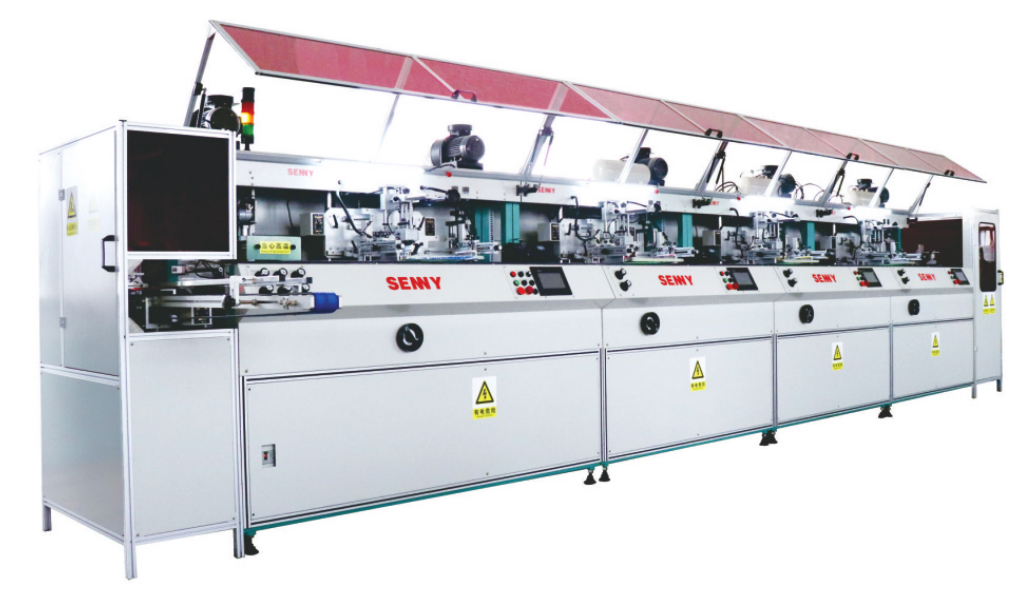

Plastic Bottle 1-8 Color 70 Pcs/Min Servo-Driven UV Printing Machine
Machine Feature
-
This machine is suitable for performing various decorative processes such as multi-color UV ink screen printing, hot stamping, and labeling on plastic bottles of different shapes, including round, oval, and square, to meet diverse bottle beautification needs.
- In terms of core drive and technical configuration, the machine adopts a digitally controlled servo motor to drive the printing operation, enabling easy 360-degree all-round printing without dead angles. Meanwhile, it is equipped with remote management and service functions compliant with Industry 4.0 standards, facilitating users to monitor equipment status in real time, conduct remote troubleshooting, and improve operation and maintenance efficiency.
- The equipment's hardware and control system both adopt high-standard configurations: electrical components are sourced from well-known brands to ensure stable operation; it is paired with an easy-to-operate touch screen and PLC control system, which simplifies the operation process, reduces the difficulty for staff to get started, and further ensures reliable equipment operation.
- To adapt to different production scales and requirements, the machine features a highly customizable modular structure. Through linear splicing and combination, it can be flexibly built into a 1-8 color multi-color printing machine, realizing flexible adjustment of production capacity and color quantity.
- In terms of basic configuration, the machine is equipped with standard screen printing and UV curing modules. Moreover, the screen printing function can be flexibly switched with hot stamping or labeling functions according to production needs, enhancing the process compatibility of a single equipment.
- In addition, users can also choose to connect the machine with independent modules such as hot stamping, labeling, and quality inspection according to the production scenario, and freely combine them into an integrated printing equipment with multiple functions, maximizing the satisfaction of complex production process requirements.
Optional Configuration
- Plasma surface treatment.
- Hot stamping function.
- Labeling function.
- LED-UV curing function.
Technical Parameters
| Machine Model | SLS1888 |
| Printed color | 1-8 |
| Max.speed | 70 pcs/min |
| Diameter at 360 degree | 20-170mm |
| Bottle height | 50-300mm |
| Max.Printing Length | 300mm |
| Max.Printing Height | 250mm |
Printing your vision
