詳細情報 |
|||
| 印刷 費用: | 低コスト | 製品名: | カップス オフセット印刷機 |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | 印刷サイズ: | カスタマイズされたサイズ |
| 印刷速度: | 1600pcs/min | 印刷解像度: | 高解像度 |
| 色の印刷: | 1-2色 | 印刷 時間: | 短い時間 |
| パッケージの詳細: | 合板パッケージ | 支払条件: | T/T |
| 証明: | CE SGS | ||
| ハイライト: | high speed plastic bottle caps printing machine,1-2 color offset printing machine,1600pcs per minute caps printer |
||
製品の説明

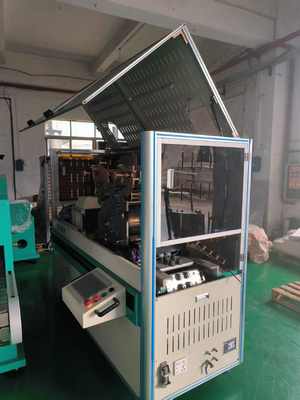

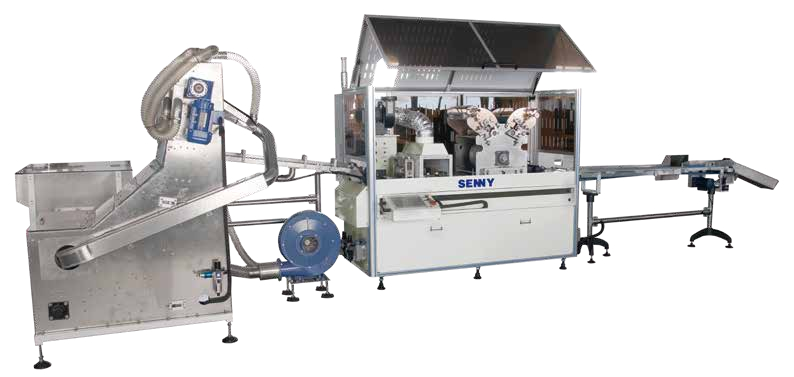

1-2 Color Plastic Bottle Caps High Speed Offset Printing Machine 1600pcs/Min
Offset printing machine for plastic caps.pdf
Machine Features:

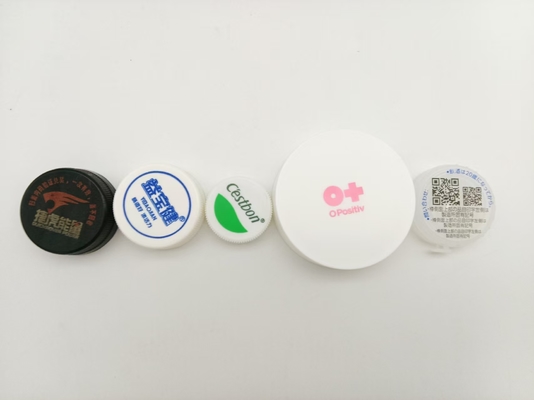

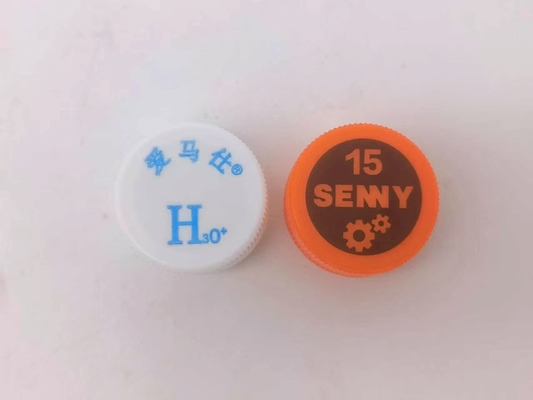

1. The machine is suitable for printing various colors of UV ink on the top of plastic bottle caps.
2. The printing speed can be adjusted arbitrarily to match the needs of cap production capacity.
3. Multiple models to be choosen, 1-2 colors or 1-4 colors perfect register printing.
4. Adjustable speed inking system, easy to adjust the thickness of the ink layer.
5. Electronically control reverse operation, simple and convenient to adjust the machine.
6. Removable console, easy to operate.
7. The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, and has reliable performance.
8. The machine can be connected to cap making machine, cap slitting machine and quality inspection machine to form a production line.
Advantages:
2-Flame treating:
Safer plasma treatment option is available
Plasma treatment produces no carbon dioxide or hot air emissions.
UV-LED curring
Energy saving 70%
No ozone or hot air emissions.
2-Flame treating UV-LED curring
Machine Parameters:
| Machine Model | SOC2168 | SOC4328 |
| Caps Diameter | 28-38mm | 28-38mm |
| Printing Area | 24-34mm | 24-34mm |
| Printing Speed | Up to 1600pcs/min | Up to 3200pcs/min |
| Printing Colors | 2-4 colors | 2-4 colors |
| Gas Consumption | 150L/Min | 150L/Min |
| Air Consumption | 600L/Min | 600L/Min |
| Air | 5-7 Bar | 5-7 Bar |
| Power | 3P 380V 50/60Hz | 3P 380V 50/60Hz |
|
