詳細情報 |
|||
| 印刷速度: | 3200pcs/min | 色の印刷: | 1-4色 |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | 状態: | 新しい |
| 保証: | 1年 | アフターセールスサービス: | ビデオまたはオンライン |
| 支払条件: | T/T | パッケージの詳細: | 合板パッケージ |
| 証明: | CE | 供給の能力: | 5pcs/月 |
| ハイライト: | HDPE PP water bottle caps,high speed caps printing machine,UV ink bottle caps printer |
||
製品の説明

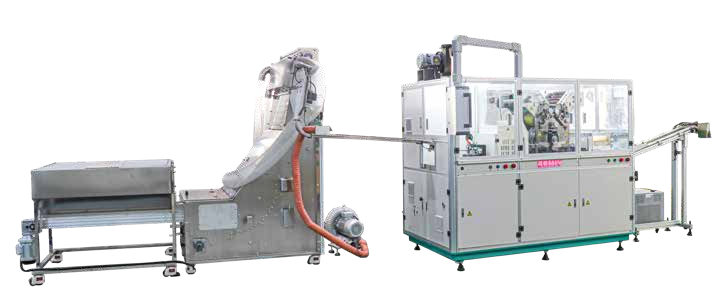

1-4 Color HDPE PP Caps Water Bottle Caps High Speed UV Ink Up To 3200pcs/Min
Offset printing machine for plastic caps.pdf
Machine Features:
-This machine is applicable for printing UV inks of various colors on the top of plastic bottle caps, featuring fast printing speed and accurate -overprinting.
-This machine is equipped with well-known brand electrical components, a touch screen, and a PLC control system—all of which are easy to operate and reliable.
-This machine can be connected to the cap-making machine and quality inspection machine for integrated operation.
2-Flame treatment:
A safer plasma treatment option is available
Plasma treatment produces no carbon dioxide or heat emissions.
UV-LED Curing
Energy saving 70
No ozone or hot gas emissions.
Optional Configuration:
- Solving and feeding machines.
- Plasma surface treatment function.
- LED-UV curing system.
- Quality Inspection Machines
| Machine Model | SOC4328 |
| Caps Diameter | 28-38mm |
| Printing Area | 24-34mm |
| Printing Speed | Up to 3200pcs/min |
| Printing Colors | 2-4 colors |
| Gas Consumption | 150L/Min |
| Air Consumption | 600L/Min |
| Air | 5-7 Bar |
| Power | 3P 380V 50/60Hz |

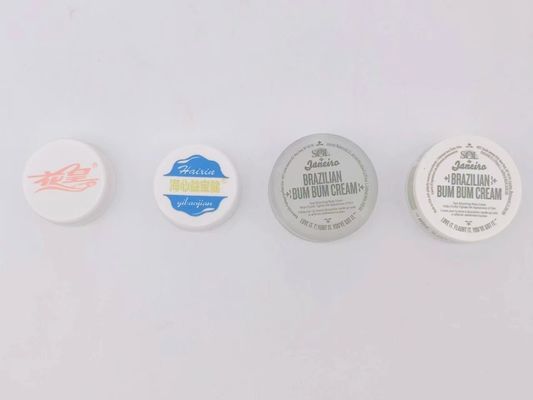

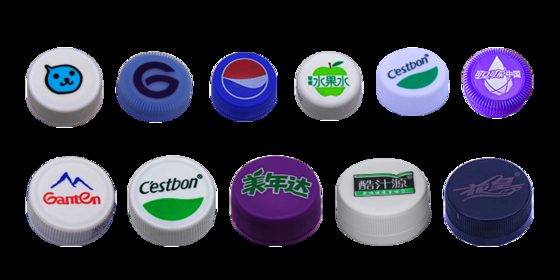

Printing sample
