詳細情報 |
|||
| 自動グレード: | 自動 | 制御システム: | サーボモーターコントロール |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | 状態: | 新しい |
| 印刷速度: | 45-70pcs/min | 印刷された色: | 1-6色 |
| パッケージの詳細: | 合板パッケージ | 支払条件: | T/T |
| アフターセールスサービス: | ビデオまたはオンライン | 保証: | 1年 |
| 供給の能力: | 5pcs/月 | ||
| ハイライト: | tube screen printing machine 360 degree,tube screen printing machine hot stamping,6 color tube screen printing machine |
||
製品の説明

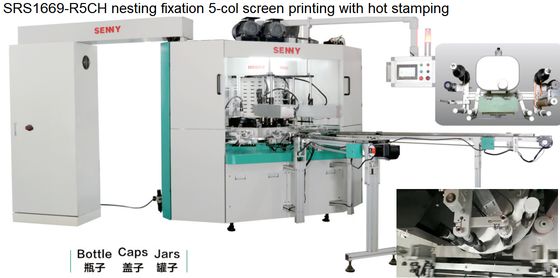

1-6 Colors Tube Screen Printing Machine 360 Degree With Hot Stamping Functions
Machine Features:
- Two-color, three-color, four-color and six-color printing models are available to meet different customer needs.
- The motion controller can control more than 15 servo motors to realize a variety of printing needs and can store data of up to 100 types of containers (e.g., cylindrical, oval, triangular, quadrangular, pentagonal, hexagonal, etc.) for customers' convenience.
- The machine is suitable for 360° printing of graphics and text on the surface of plastic, metal and glass containers of all shapes.
- Container pre-registration, surface treatment, multi-color printing and curing are completed on a servo fixture, which provides accurate color registration and is less likely to damage the product surface.
- Optional bottle bottom or bottle mouth visual positioning system when feeding containers, solving the problem that traditional printing machines tend to damage the bottom of containers.
- UV curing can be partially or fully utilized with LED-UV curing system to save energy.
- A screen printing and UV curing station can be removed to make way for the installation of a hot stamping system—this enables screen printing and hot stamping to be carried out simultaneously, thereby cutting down on production time.
- The final screen printing and UV curing unit can be removed to make way for the installation of a visual inspection system. This system automatically separates qualified from unqualified products after discharge, thereby reducing labor requirements.
- The machine is equipped with remote management function to monitor the production process.
Features:
1. Less tooling, easy operation, low maintenance and high accuracy. High colour to colour register accuracy.
2. Controlled Servo-moto, with kinds of monitor system to ensure the machine running stable and safe at high speed.
3. According to the characteristics of products , this machine can be equipped with kinds of functions.

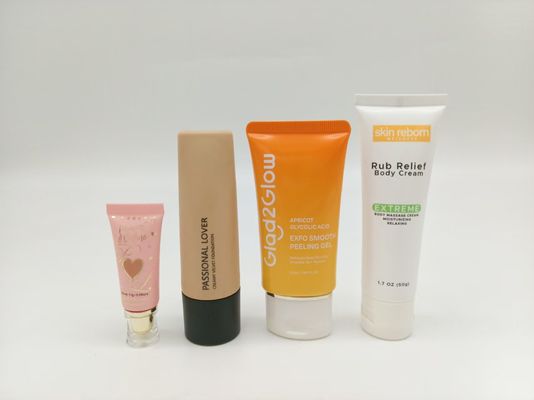

Printing sample
Technical Specification:
- Output: up to 40 parts per minute
- Printing diameter at 360°: 12.7–104mm(1/2”–4”)
- Container height: 50–250 mm (2”–14”)
- Max print length: 250mm (14”)
- Max print height: 154 mm (6”)
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
