詳細情報 |
|||
| 最小注文数量: | 1pc | 価格: | negotiable |
|---|---|---|---|
| パッケージの詳細: | 合板パッケージ | 受渡し時間: | 1か月 |
| 支払い条件: | T/T | 供給の能力: | 10pcs/月 |
| 証明: | CE SGS | パッケージの詳細: | 合板パッケージ |
| アフターセールスサービス: | ビデオまたはオンライン | 色の印刷: | 1-4色 |
| ハイライト: | tube screen printing machine with LED-UV curing,high-speed tube screen printing machine 85pcs/min,hot stamping tube screen printing machine |
||
製品の説明

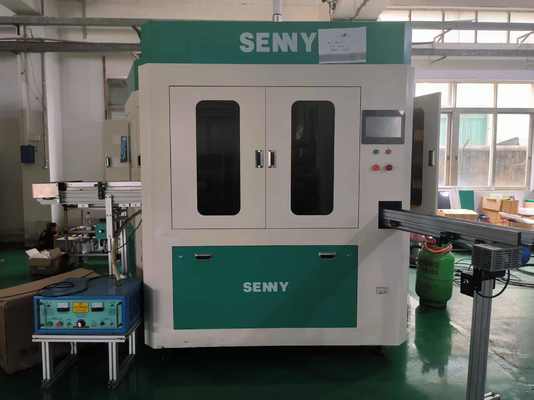

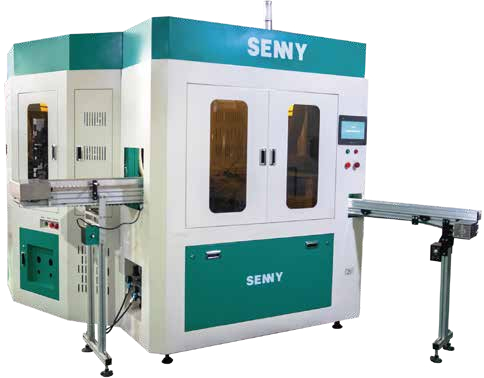

1+4 Color Tube Screen Printing Machine Hot Samping LED-UV Curing 85pcs/Min
PRODUCT
Features
- Driven by a servo motor and controlled digitally, the machine operates stably with high printing accuracy. A component renowned for its rapid dynamic response, stable torque output, and exceptional low-speed high-torque performance—and regulated via a precision digital control system (e.g., a dedicated industrial PLC or motion controller).
- Equipped with both a fixed touch screen and a mobile wireless tablet control system, it supports remote services—enabling technical engineers to securely access the machine’s control system via encrypted network for remote diagnostics (identifying issues like component wear or parameter mismatches), optimizing operating parameters (e.g., fine-tuning printing pressure for different materials), or firmware upgrades. This eliminates on-site visits and cuts average maintenance response time by 60%.
- The machine uses core electrical components from internationally recognized industrial brands to guarantee long-term reliable performance. For example, it adopts Schneider low-voltage circuit breakers (with overload and short-circuit protection) for safe power distribution, Siemens S7-series industrial PLCs (high anti-interference) for logic control and task scheduling, and Omron E3Z-series photoelectric sensors (0.1mm detection accuracy) for precise printing platform positioning.
Technical parameters
| Mechine Model | SRS566 |
| Printimg Color | 1+4 |
| Printing speed | Up to 85pcs/min |
| Soft Tube Diameter | 13-76mm |
| Soft Tube Length | 30-240mm |
| Max Printing Length | 220mm |
| Max Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Configuration
- Unscrambling&feeding machine Hot stamping function plasma surface treatment function
- Visual registration function LED-UV curing function Finished product quality inspection function
flame treatment device
UV curing
feeding device
Hot staming for small tube
Applications
SRS566 CNC Tubular UV Screen Printing Machine is a fully automatic CNC model, specifically designed for tiny cosmetic and skincare plastic containers. With a wide application scope, it supports UV screen printing on various cylindrical tubes, including cosmetic, pharmaceutical, toothpaste, plastic, metal, glass and composite tubes.
Printing sample
About us
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
