詳細情報 |
|||
| モデル番号: | SOC4328 | オートグレード: | 完全に自動 |
|---|---|---|---|
| 印刷色: | 1-4色 | アフターサービス: | ビデオまたはオンライン |
| ブランド: | セニー | プレートタイプ: | スクリーンの印字機 |
| ハイライト: | automatic plastic bottle cap printer,UV offset printing machine for caps,high-speed 4 color cap printer |
||
製品の説明

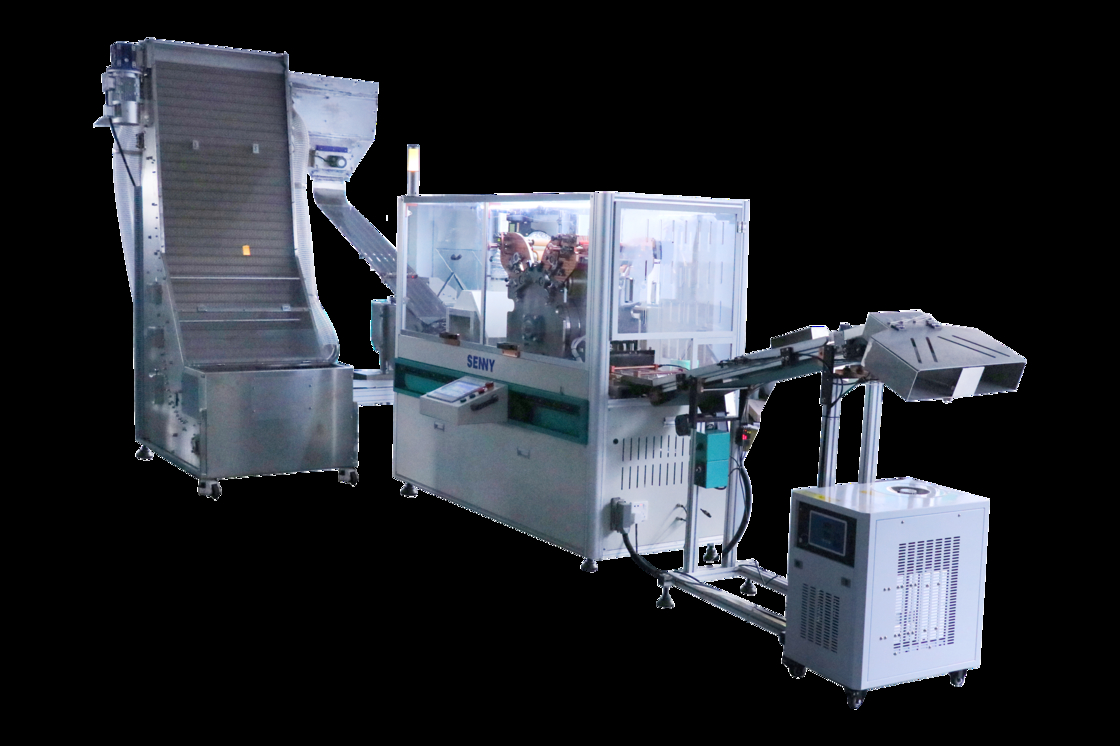

1-4 color 2400pcs/min Plastic Bottle Cap Automatic UV Offset Printing Machine
Machine Feature
- This machine is specially engineered for UV ink printing on the top of plastic bottle caps, supporting a variety of colors. It is ideal for batch production in the beverage, daily chemical, and food packaging sectors.
- An optional 1-4 color variable-speed printing system is available, featuring precise color registration. Even for complex patterns with gradients or color overlaps, it can maintain consistent color alignment, effectively guaranteeing printing quality.
- The machine uses electrical components from well-known brands, paired with a user-friendly touchscreen and PLC control system, ensuring reliable performance. Additionally, the touchscreen supports parameter storage and one-click retrieval, shortening the adjustment time when switching between different cap types.
-
It can be connected to cap-making machines, cap-slitting machines, and quality inspection machines to form a fully automated production line. This minimizes manual handling processes and enhances overall production efficiency.
Optional Configuration
- Unscrambling & feeding machine. Cap slitting machine. LED-UV curing system.
- Plasma surface treatment function. Quality inspection machine.
Technical Parameters
| Machine Model | SOC4328 | SOC3248 |
| Printing Color | Available in 1-4 Colors | Available in 1-4 Colors |
| Printing Speed | Up to 3200 pcs/min | Up to 2400 pcs/min |
| Bottle Caps Diameter | 28-38 mm | 28-38 mm |
| Printing Diameter | Less than 35mm | Less than 35mm |
Senny caters to a wide spectrum of industries, ranging from food, pharmaceuticals and toys to cosmetics, daily chemicals, electronics and decorative products. By leveraging a comprehensive suite of automatic printing technologies—such as screen printing, pad printing, hot stamping, labeling, offset printing and digital printing—it achieves high-quality, intricate graphics and text printing on the surfaces of products with diverse shapes, which are crafted from materials including plastic, metal, glass and ceramics.
