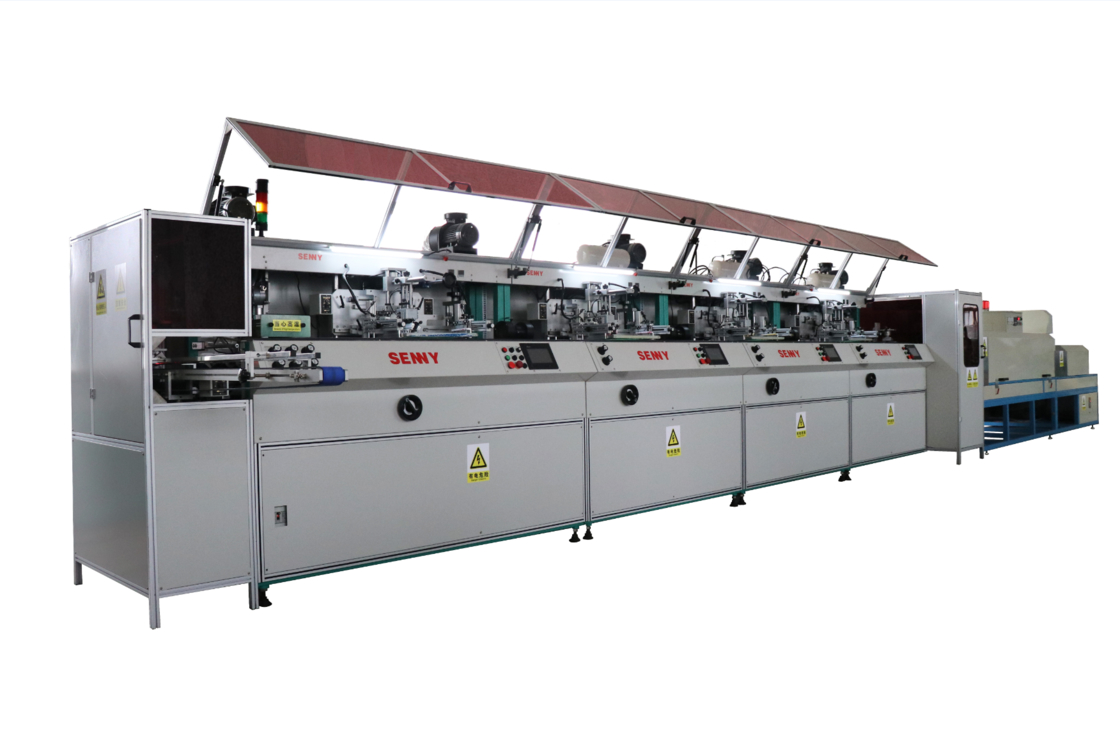

Servo-Driven 12 Color Bottle Silk Screen Printing Machine CE Certification 6000pcs/Hr

Servo-Driven 12 Color Bottle Silk Screen Printing Machine CE Certification 6000pcs/Hr

SL1788 introduction.pdf

Technical Specifications:

SAFE EFFIENCY INNOVATIVE

• SLS1888 Servo-driven automatic machine for silk-screen printing of containers in plastic or other materials, having a circular, elliptical, square or rectangular section with centered or off-center neck,and it is easy for changing different shapes on printing section.

• Shape changeover: 30minutes for each machine,from cylindrical format to elliptical or flat format, can print all around in 360 degree.

• Linear unit structure combination: option of adding up to a total of eight in-line colors .

• The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.

• In-feeding parts includes:in-feeding belt and machine hand for side-selection.

• The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.

• Flame treatment for round,elliptical and rectangle container

• Device for pre-positioning

• Second time positioning for printing.

• Electronic lift for squeegee.

• UV curing by rotating round container driven by stepper motor.

• Electronic UV system: device for adjusting light freely(LED UV curing system can be as a replacement)

• Elliptical and square container side-selection for auxiliary machine section

• Output parts:Machine hand for container standing up and belt

• Conform to CE standard.

SLS1888 can be configurated with Plasma Treating system, labelling system, hot-stamping system or UV-LED system as customer's specific demands.

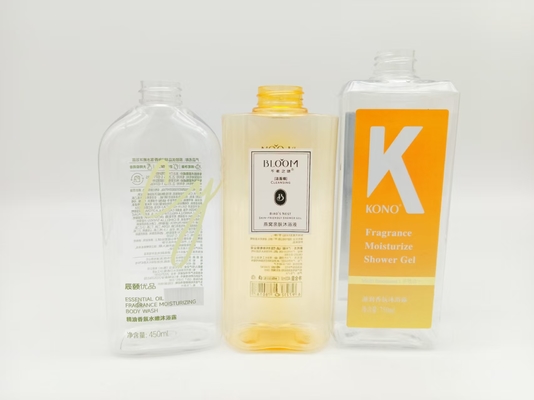

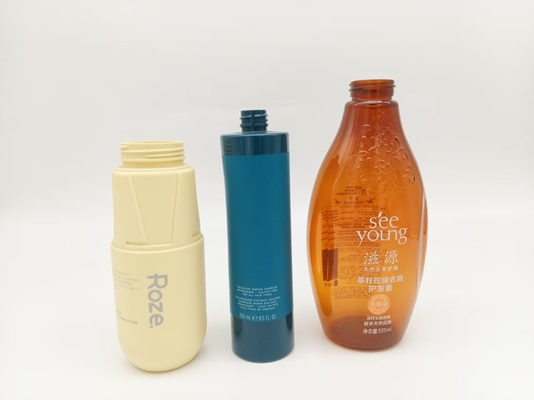

Printing samples

Workshop

About us:

SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.

SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.

In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.

With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
