詳細情報 |
|||
| 印刷速度: | 3200pcs/min | 色の印刷: | 1-4色 |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | 状態: | 新しい |
| 保証: | 1年 | アフターセールスサービス: | ビデオまたはオンライン |
| 支払条件: | T/T | パッケージの詳細: | 合板パッケージ |
| 証明: | T/T | ||
| ハイライト: | 2-4 color plastic bottle caps printing machine,detachable console caps printing machine,easy operation bottle caps printer |
||
製品の説明

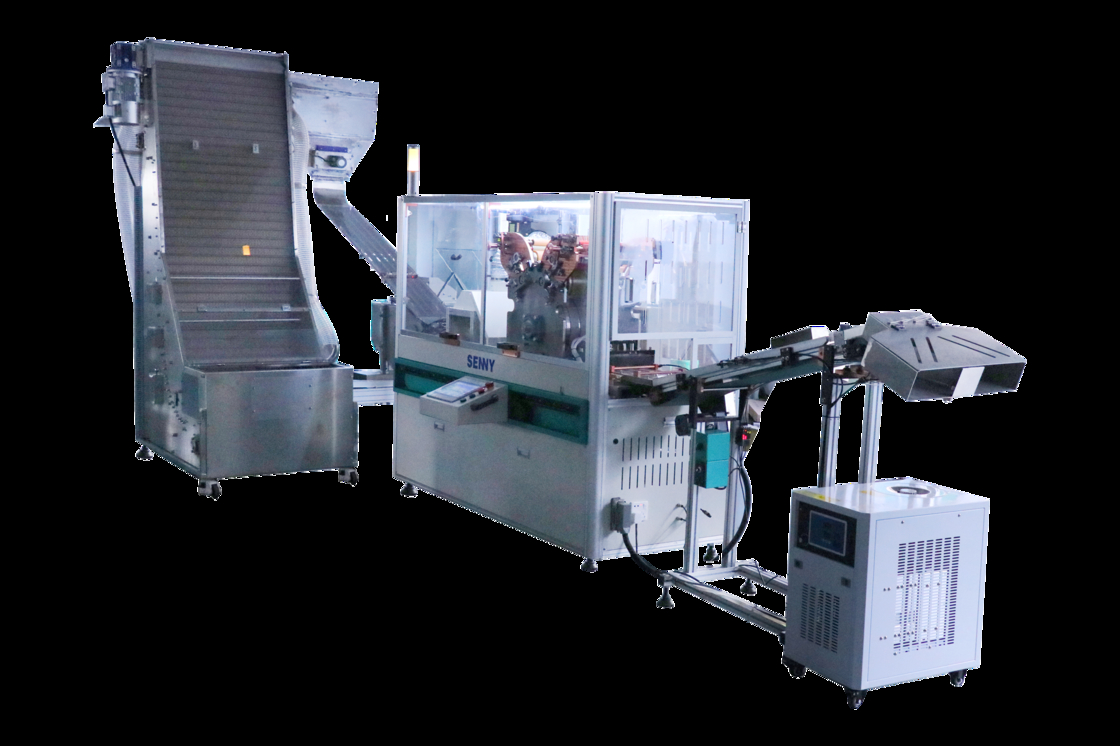

Plastic Bottle Caps Printing Machine With 2-4 Colors Perfect Color Printing And Detachable Console For Easy Operation
Offset printing machine for plastic caps.pdf
Machine Features:

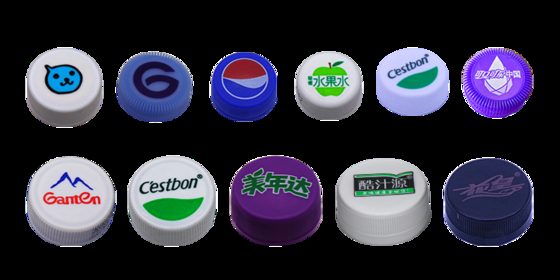

1. The machine is applicable to print various colors of UV inks on the top of plastic bottle caps.
2. Printing speed can be adjusted to meet the needs of cap production capacity.
3. Various models are available, 1-2 colors or 1-4 colors perfect color printing.
4. Adjustable-speed inking system: Allows flexible adjustment of ink thickness to adapt to different printing requirements, ensuring consistent and high-quality ink coverage.
5. Electronic control for reverse operation: Enables convenient machine adjustment via electronic control, simplifying the process of correcting or fine-tuning during operation.
6. Detachable console: Features a detachable design that enhances operational convenience, allowing for flexible placement or maintenance based on on-site needs.
7. The machine adopts famous brand electrical components, touch screen and PLC control system is easy to use, reliable performance.
8. The machine can be connected with cap making machine, slitting machine and quality inspection machine to form a production line.
2-Flame treatment:
A safer plasma treatment option is available
Plasma treatment produces no carbon dioxide or heat emissions.
UV-LED Curing
Energy saving 70
No ozone or hot gas emissions.
| Machine Model | SOC2168 | SOC4328 |
| Caps Diameter | 28-38mm | 28-38mm |
| Printing Area | 24-34mm | 24-34mm |
| Printing Speed | Up to 1600pcs/min | Up to 3200pcs/min |
| Printing Colors | 2-4 colors | 2-4 colors |
| Gas Consumption | 150L/Min | 150L/Min |
| Air Consumption | 600L/Min | 600L/Min |
| Air | 5-7 Bar | 5-7 Bar |
| Power | 3P 380V 50/60Hz | 3P 380V 50/60Hz |
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
