詳細情報 |
|||
| 印刷された色: | 1 から 8 色 | スピード: | 1分間に80個まで |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | プレートタイプ: | スクリーンの印字機 |
| 保証: | 1年 | 自動グレード: | 自動 |
| 支払条件: | T/T | 証明: | CE |
| アフターセールスサービス: | ビデオまたはオンライン | パッケージの詳細: | 合板パッケージ |
製品の説明

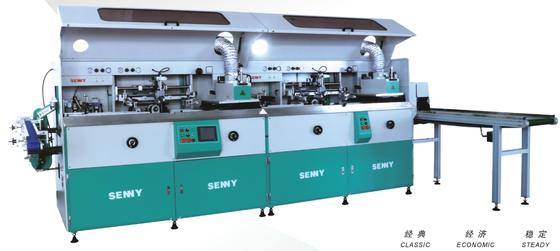

Linear Unit Structure Combination For Maximum 8-Color Printing With Fully Automatic Screen Printing Machine
Designed for cylindrical, oval and flat bottles, the machine is widely used for chemical and food packaging.
Product features:
* SL168 automatic printing machine for screen printing of containers in plastic or other materials with round, oval, square or rectangular cross sections and centered or off-center necks. And it is easy for changing different shapes on printing section.
* Shape changeover: From cylindrical to oval or flat shapes in just 30 minutes per machine.
* Linear unit structure combination: Can be operated as a maximum 8-color printing system, each color is controlled independently and can be split according to the number of colors required.
* Machine is PLC and touch screen operated for easy operation with excellent alarm system.
* Feeding components include: Feed belts and robot hand for side selection.
* Flameable for round, oval and square containers
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegee
* UV curing by rotation of round containers driven by stepper motors.
* Electronic UV system: 3-stage light adjustment device (alternative to LED UV curing system)
* Lateral selection of oval and square containers in the auxiliary section
* Output belt
Technical Specifications:
| Max production speed | 4800pcs/hr |
| Min. Diameter of cylindrical container | 20mm |
| Max.Diameter of cylindrical container | 100mm |
| Min. Radius of elliptical container | 30mm |
| Max. Radius of elliptical container | 250mm |
| Max. Width or elliptical and flat container | 120mm |
| Min. Length of elliptical and flat container | 50mm |
| Max. Length of elliptical and flat container | 280mm |
| Max. printing width | 200mm |
| Max. printing length | 300mm |

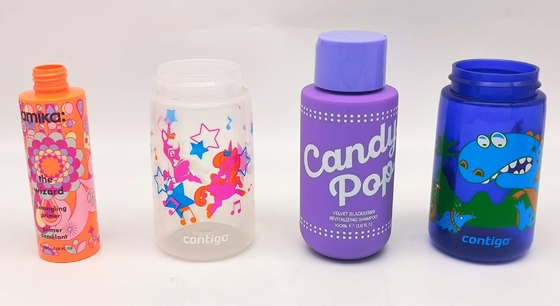

Printing samples
Exihibition Show
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
