詳細情報 |
|||
| 製品の形状: | 方形と多角形 | マシンタイプ: | 標識のステッカー |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | 重さ: | 370kg |
| 保証: | 1年 | アフターセールスサービス: | ビデオまたはオンライン |
| パッケージの詳細: | 合板パッケージ | 支払条件: | T/T |
| 証明: | CE | ||
製品の説明

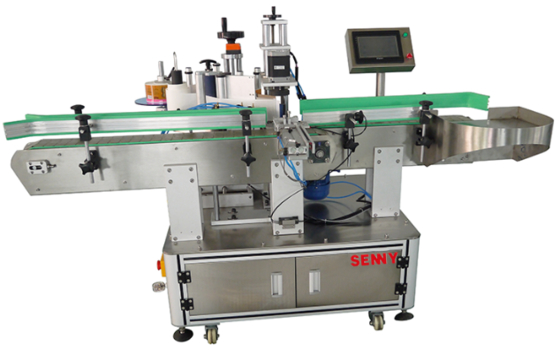

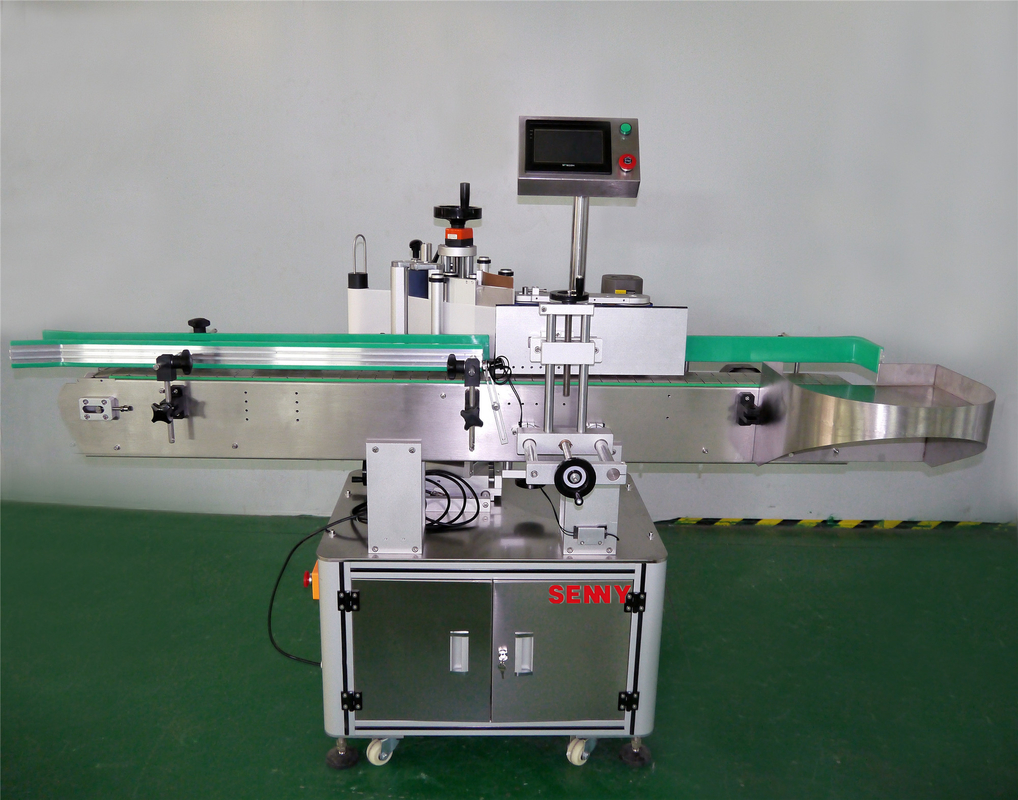

Automatic Labeling Machine Circumferential Surfaces High Accuracy And Efficiency
Applicable Labels:
Covers a wide range of label types, including self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, and more, meeting diverse labeling material requirements.
Applicable Products:
Suitable for labeling on products with various surface types, such as side planes, side surfaces, large curved surfaces, and circumferential surfaces, ensuring stable and accurate labeling for different product structures.
Application Industries:
Widely applied in multiple industries, including printing, cosmetics, food, toys, daily chemicals, electronics, plastics, medicine, etc., adapting to the labeling needs of different industrial sectors.
Application Examples:
Typical application scenarios include labeling on shampoo flat bottles, lubricant flat bottles, mineral water square bottles, wine bottles, and other similar products, demonstrating practical adaptability in daily production.
Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
| Model |
SY500 |
Labeling accuracy |
±1mm |
| Sticker length |
20mm～220mm |
Sticker turning out speed |
5～25m/min |
| Sticker width |
20mm～150mm |
Labeling speed |
30～150pcs/min |
| Product length |
20mm～250mm |
Conveying speed |
5～35m/min |
| Product width |
30mm～90mm |
Weight |
370kg |
| Product height |
60mm～280mm |
Power voltage |
220V 50HZ |
| Product diameter |
40mm～110 mm |
Power |
2KW |
| Sticker roll's external diameter |
Φ280mm |
Conveying oriention |
fm left to side |
| Sticker roll's inner diameter |
Φ76mm |
Machine dimensions |
3000*1400*1600mm |
SY500 Workflow:
Product feeding - Transportation - Guiding the product to the right direction - Top pressure transportation - Inspection - Labeling - Pressure labeling - Secondary pressure labeling (some products) - Product output.

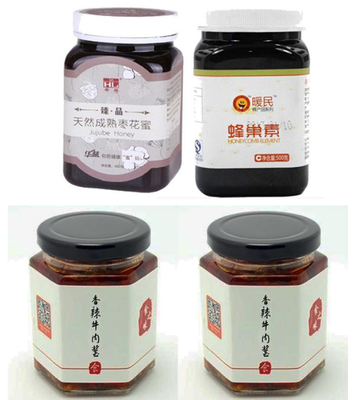

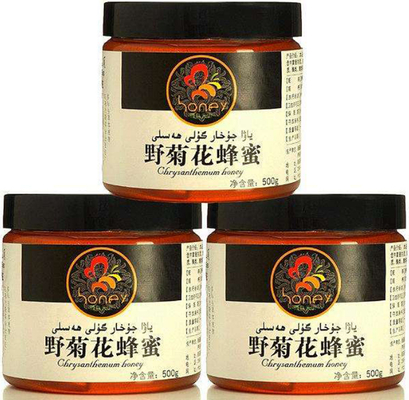

Sample
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
