詳細情報 |
|||
| オートグレード: | 完全に自動 | プレートタイプ: | 画面プリンター |
|---|---|---|---|
| 印刷された色: | 1-6色 | 耐久性を印刷します: | 耐久性が高い |
| 保証: | 1年 | アフターセールスサービス: | ビデオまたはオンライン |
| 支払い条件: | T/T | パッケージの詳細: | 合板パッケージ |
| 証明: | T/T | ||
製品の説明

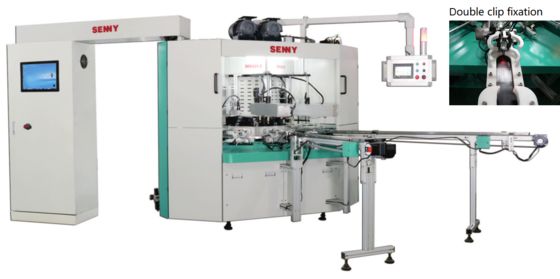

2 Color Bottles And Jars Screen Printer Workable For Various Shapes 8 Station
Product features:
This machine is suitable for printing UV inks of various colors on plastic, metal, glass, ceramic bottles and cans of various shapes.
The machine adopts digital control servo drive to complete various functions and printing, which can easily realize 360 degree printing for various shapes of products.
The machine adopts integrated turntable structure, the products are rotated to different stations in one fixture to realize the functions of feeding, positioning, surface treatment, printing, curing and discharging. The products are not easy to grind and the printing accuracy is up to ±0.1mm.

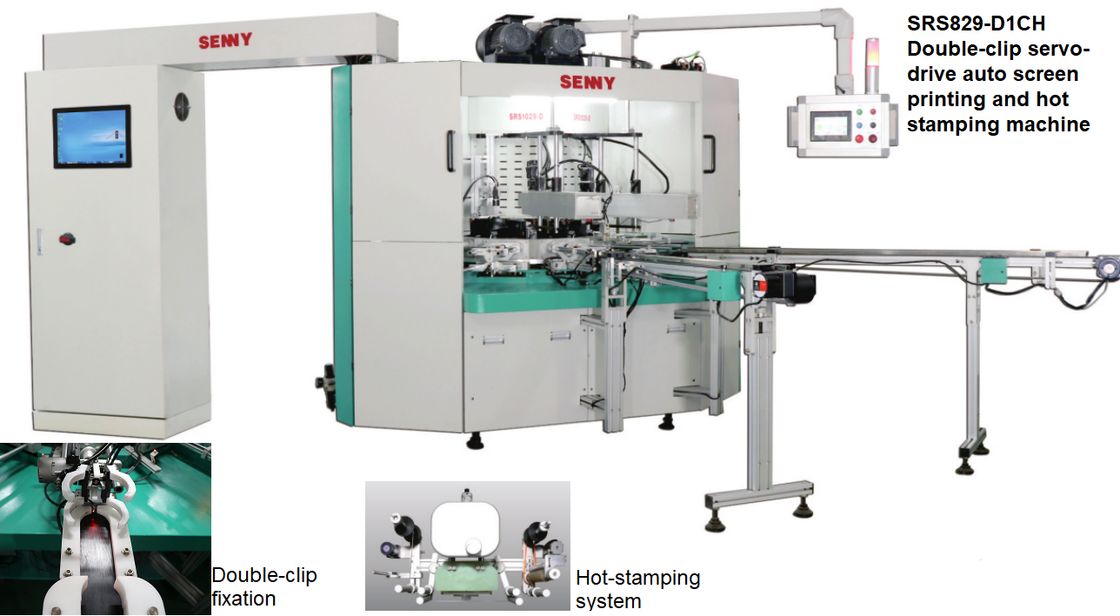

The machine can be connected with hot stamping or labeling module to become a multifunctional printing line of screen printing plus hot stamping or labeling.
The machine can be installed with finished product inspection function to divert unqualified products instead of manual inspection.
Feeding conveyor can be directly connected with bottle making equipment or with automatic bottle trimmer to replace manual feeding.
After printing, the discharge can be connected to bagging machine instead of manual bagging.
Technical Specifications:
| Specification/Model | SRS829 | SRS1039 | SRS1249 | SRS1669 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–65mm |
| Height of bottle | 20–220mm |
| Printing length | 200mm |
| Printing height | 120m |
Applications:
SRS829 CNC Small Container UV Screen Printing Machine is a UV screen printing machine for small containers. The printing scope is very wide and it can be used for screen printing of many small containers such as lids, bottles, eyebrow pencils, syringes, etc.

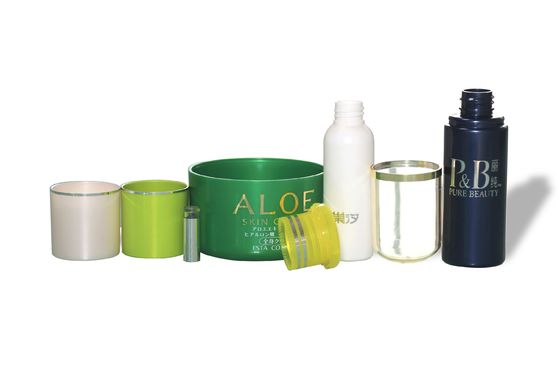

Printing sample
