詳細情報 |
|||
| 印刷速度: | 3200pcs/min | 色の印刷: | 2色 |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | 状態: | 新しい |
| 保証: | 1年 | アフターセールスサービス: | ビデオまたはオンライン |
| 支払い条件: | T/T | パッケージの詳細: | 合板パッケージ |
| 証明: | CE SGS | ||
| ハイライト: | automatic bottle caps printing machine,high speed caps printing machine,2 color bottle caps printer |
||
製品の説明

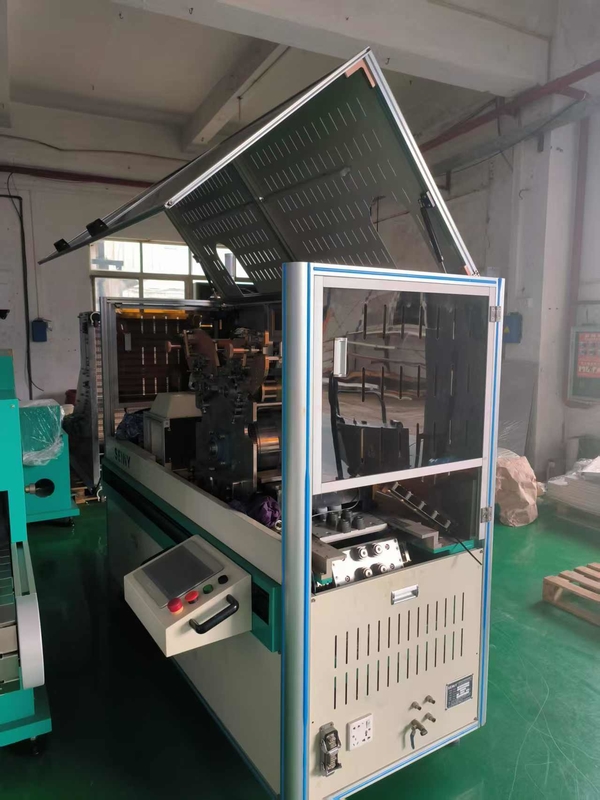

2 Color Automatic Bottle Caps Printing Machine High Speed 1600pcs/Min
Offset printing machine for plastic caps.pdf
Machine Features:
- The machine is suitable for printing UV inks of various colors on the top of plastic bottle caps.Optional 2 color variable speed printing system, accurate color registration.
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- The machine can be connected with cap making machine, cap slitting machine and quality inspection machine.
- Multiple models to choose from to meet the needs of various users
-
The machine adopts well-known brand electrical components with reliable performance.
2-Flame treatment:
A safer plasma treatment option is available
Plasma treatment produces no carbon dioxide or heat emissions.
UV-LED Curing
Energy saving 70
No ozone or hot gas emissions.
Optional Configuration:

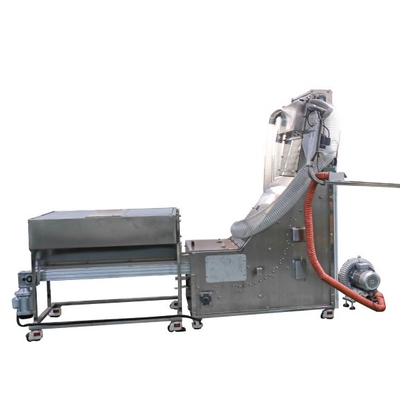

- Solving and feeding machines.
- Plasma surface treatment function.
- LED-UV curing system.
- Quality Inspection Machines
-
Cap slitting machine
| Machine Model | SOC2168 |
| Caps Diameter | 28-42mm |
| Printing Area | 24-34mm |
| Printing Speed | Up to 1600pcs/min |
| Printing Colors | 2-4 colors |
| Gas Consumption | 150L/Min |
| Air Consumption | 600L/Min |
| Air | 5-7 Bar |
| Power | 3P 380V 50/60Hz |
Printing sample
Applications
SOC2168 Automatic Bottle Cap Two-Color UV Offset Printing Machine is an automatic offset printing machine dedicated to bottle cap printing. It has a wide application range and can be used for offset printing on various bottle caps (e.g., plastic caps, aluminum caps, tinplate caps) in industries including beverage, wine, condiment, and cosmetics. Equipped with a UV curing system, it can rapidly cure inks, ensuring sharp and abrasion-resistant printed patterns on bottle caps.
Printing sample
