詳細情報 |
|||
| オートグレード: | 完全に自動 | プレートタイプ: | 画面プリンター |
|---|---|---|---|
| アフターセールスサービス: | ビデオまたはオンライン | 印刷色: | 6 |
| ハイライト: | 6-color automatic screen printing machine,CNC UV curing machine for tubes,45pcs/min bottle printing machine |
||
製品の説明

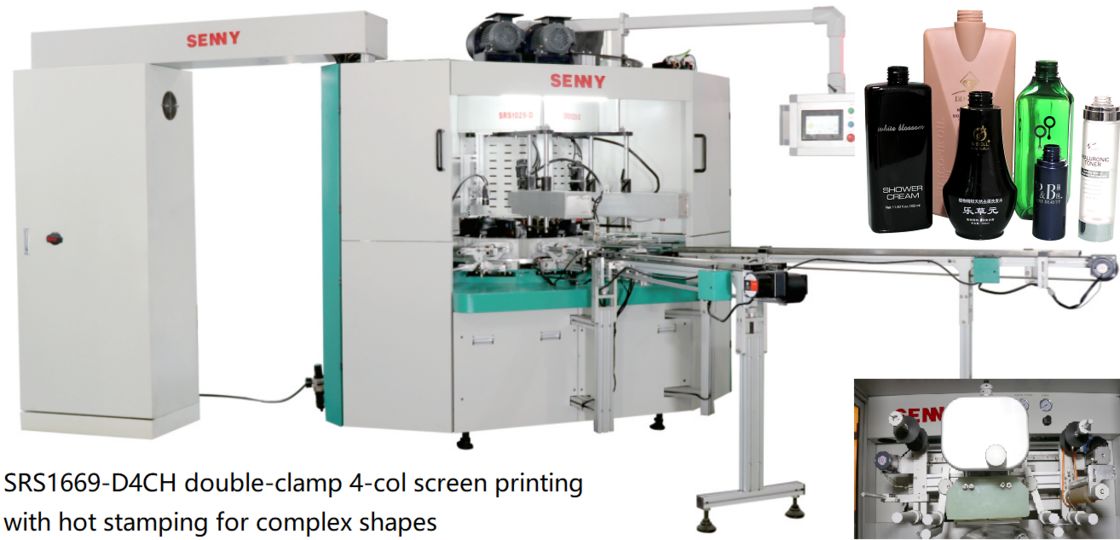

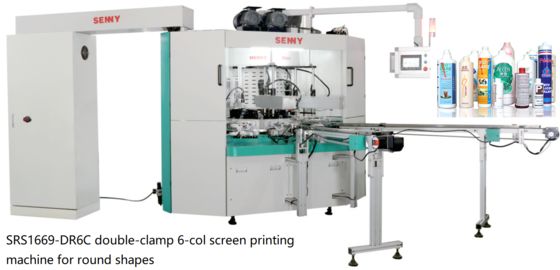

Machine Feature
- This machine is capable of performing screen-printing with multi-color UV inks, hot stamping, and other decorative processes on a variety of products. These include bottles, jars, caps, and items with irregular shapes, which can be made from materials such as plastic, metal, glass, and more.
- With an integrated turntable design, the machine accomplishes all printing tasks using the same set of fixtures. It boasts an impressive printing accuracy of up to ±0.1mm and ensures that products remain free from scratches during the process.
- Powered by a digitally controlled servo motor, the machine allows for 360-degree printing on products. In line with Industry 4.0 standards, it is also equipped with remote management and service functionalities.
Optional Configuration
-Product lying flat feeding and discharging function.
- It is equipped with LED-UV curing system.
-Hot stamping function.
- It has a labeling function.
- A plasma surface treatment function.
- A function for visual alignment of bottle bottoms.
Technical Parameters
| Machine Model | SRS1669 |
| Work Station | 16 |
| Printing Color | 6 |
| printing Speed | Up to 45 pcs/min |
| Diameter at 360 Degree | 13-60mm |
| Container Height | 20-200mm |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
