詳細情報 |
|||
| オートグレード: | 完全に自動 | プレートタイプ: | 画面プリンター |
|---|---|---|---|
| アフターセールスサービス: | ビデオまたはオンライン | 印刷色: | 4 |
| ハイライト: | 利点：4色で印刷し、円形、三角形、楕円形、六角形、不規則な形など、多様な形状の製品を収容できます。ガラス、金属、セラミック、プラスチックなど、さまざまな材料を選択できます。オプション | ||
| ハイライト: | 4-color automatic screen printing machine,CNC screen printing machine for tubes,45pcs/min bottle screen printing machine |
||
製品の説明

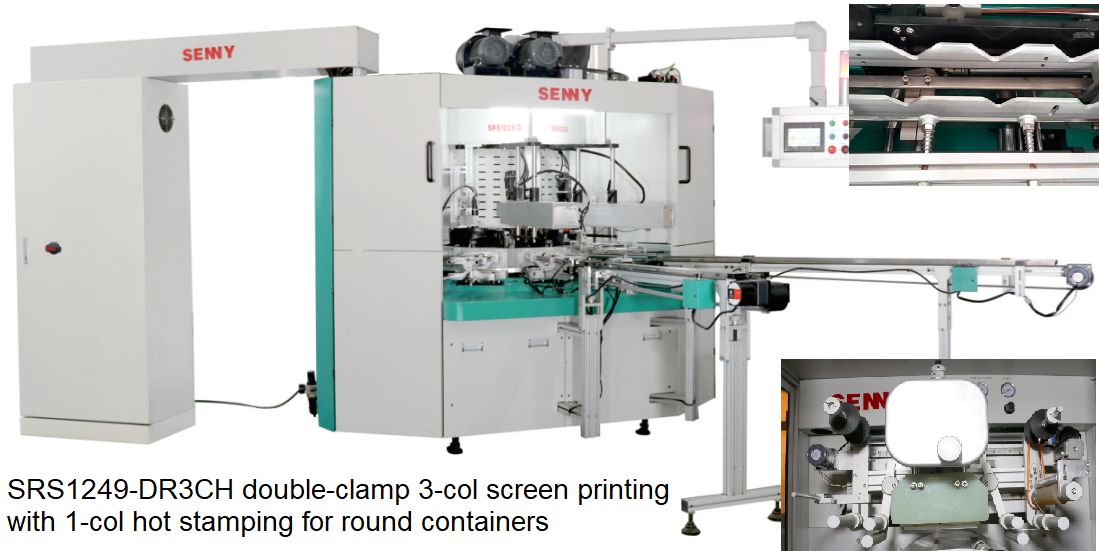

Machine Feature
- This machine is capable of performing screen-printing with multi-color UV inks, hot stamping, and other decorative processes on a variety of products. These include bottles, jars, caps, and items with irregular shapes, which can be made from materials such as plastic, metal, glass, and more.
- With an integrated turntable design, the machine accomplishes all printing tasks using the same set of fixtures. It boasts an impressive printing accuracy of up to ±0.1mm and ensures that products remain free from scratches during the process.
- Powered by a digitally controlled servo motor, the machine allows for 360-degree printing on products. In line with Industry 4.0 standards, it is also equipped with remote management and service functionalities.
Optional Configuration
- A function for loading and unloading products in a horizontal position.
- A function for examining the quality of finished products.
- A function for visual alignment of bottle bodies.
- An LED-UV curing system.
- A plasma surface treatment function.
- A function for visual alignment of bottle bottoms.
Technical Parameters
| Machine Model | SRS1249 |
| Printing Color | 4 |
| printing Speed | Up to 45 pcs/min |
| Diameter at 360 Degree | 13-600mm |
| Container Height | 20-200mm |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
