詳細情報 |
|||
| 色の印刷:: | 4コラースクリーンプリント+1コラーホットスタンプ | 駅: | 5つのステーション |
|---|---|---|---|
| 耐久性を印刷します: | 耐久性が高い | 状態: | 新しい |
| 保証: | 1年 | アフターセールスサービス: | ビデオまたはオンライン |
| 支払い条件: | T/T | 受渡し時間: | 45days |
| 証明: | CE SGS | パッケージの詳細: | 合板パッケージ |
| ハイライト: | robotic arm auto hot stamping machine,4 color screen printing servo drive,double-clamp fixation high-speed printing machine |
||
製品の説明

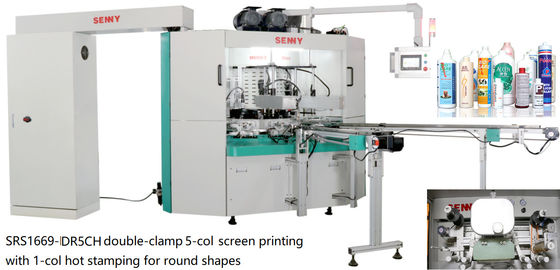

Robotic Arm Servo Drive Auto Hot Stamping Machine With 4 Colors Screen Printing And Double-Clamp Fixation For High-Speed Printing
Application
The machine is designed with a multi-purpose concept, focusing on screen printing and hot stamping operations. It is particularly suitable for round lotion bottles, cups and other products, enabling flexible partial or 360-degree full-range screen printing and hot stamping processing.
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Features
Blanking device
The bottles are gripped into the fixture by a robotic arm so that the product stands on the conveyor belt. If the bottles cannot stand because they are too small, too tall or have an irregular shape at the bottom, bottle holders can be added to the conveyor belt.
Flaming treament device for PP/PE material
UV curling device
Customer's plant using our machine
About us
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
