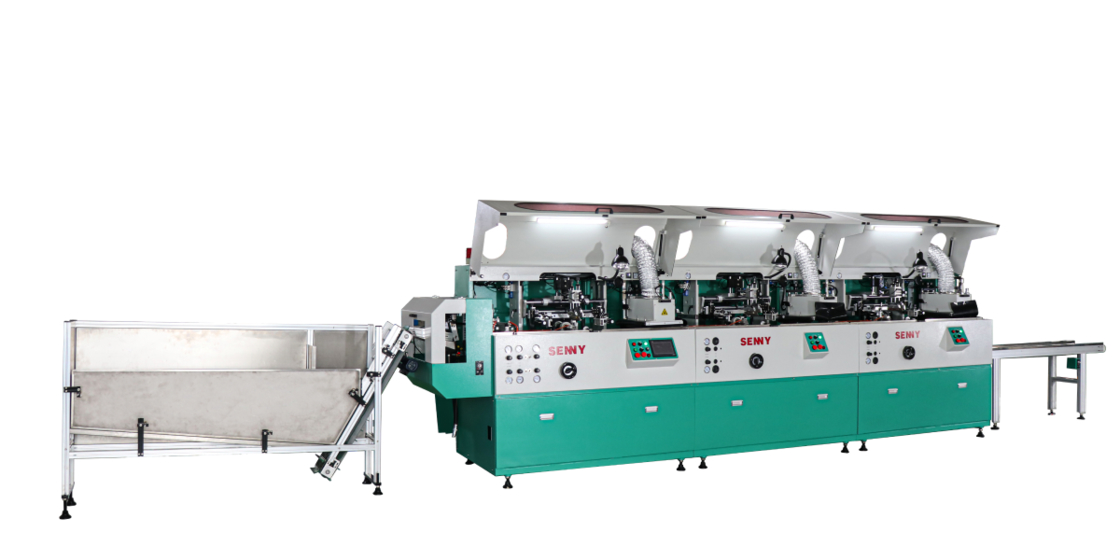

Machine Features

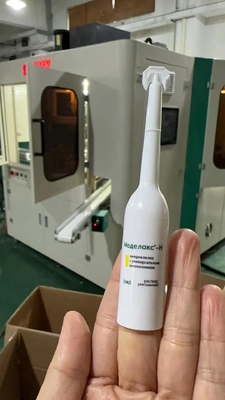

- The machine is suitable for screen printing of various of UV ink , hot stamping ,labeling and other decorations on round sealant tubes.
- The machine adopts well-known brand electrical components,easy-to-use touch screen and PLC control system, with reliable performance.
- The machine uses a highly customizable modular structure, which can be connected in a straight line to be 1-8 colors pringting machine.
- The standard configuration of the machine is screen printing and UV curing module, and the screen printing function can be selected to be interchangeable with hot stamping or labeling functions.
- The machine can be chosen to connect with independent hot stamping ,labeling ,quality inspection and other modules to combine into a multi-functional printing machine.
Optional Configuration
- hot stamping
- labeling function
- LED-UV curing function
Technical Parameters
| Machine Model | SL1285 |
|---|---|
| Printing Speed | up to 80 pcs/min |
| Product Diameter | 40 -60mm |
| Product Height | 150-250mm |
| Max Printing Lengrth | 250mm |
| Max Printing Height | 250mm |
